Description
| Manufacturer | Kadee |
|---|---|
| Scale | O Scale |
Kadee 745 O Scale Type E Medium Centerset Metal Couplers w/Plastic Gearboxes
This industry-leading coupler features New Generation AAR Type “E” “Prototype” Head Medium Centerset Metal Couplers, and #850 O Scale centering spring, and comes complete with Plastic Gearboxes and lids. The #745 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold separately), #819 Extended Metal Gearbox (sold separately).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
#745 Coupler Instructions
Two pair per package
UPC: 765484007456
O-Scale
New Generation AAR Type “E” “Prototype” Head:
Simple Drop in Design
Trouble Free Operation
Hidden Knuckle Spring
AAR Type “E” Coupler Style
Compatible with Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last…

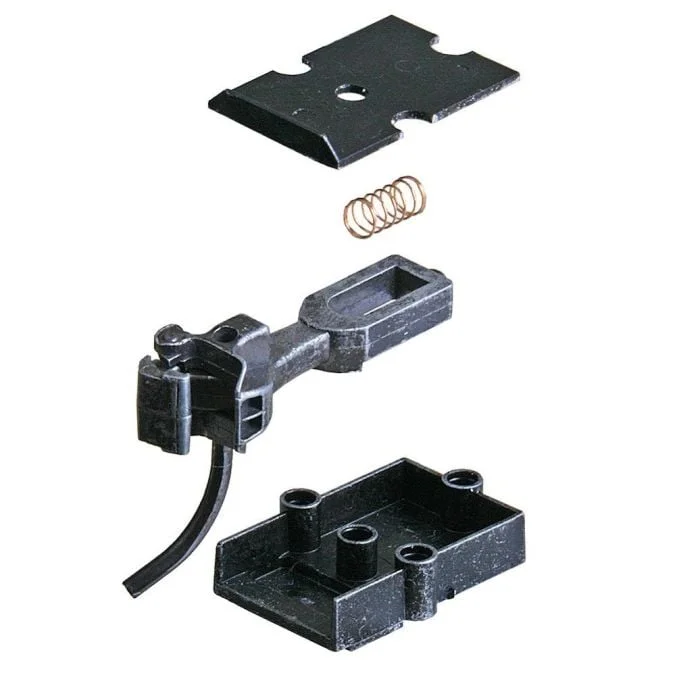

Package Includes:
(4) Each #745 Type “E” “Prototype” Metal Couplers – Medium Centerset Shank
(4) Each #817 Plastic Gearboxes & lids
(5) Each #850 O Scale Centering Springs
#745 Metal Coupler Features:
Material – Metal
Shank Length – Medium (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset – Centerset
Centering Spring – #850 O Scale Centering Springs
Head – New Generation AAR Type “E” “Prototype” Head
Works In Place of – #740, #800, #801, #804, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With – #817, #818, #819 Draft Gearboxes
#817 Plastic Draft Gearboxes & Lids Features:
Material – Plastic
Dimensions – 25/32″L x 1/2″W x 7/32″H
Works With – #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers
Mounting Specifications:
Mounting Height – 25/32″
Centerline – 1 1/16″
Trip Pin Height – 1/16″
Mounting Holes – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
